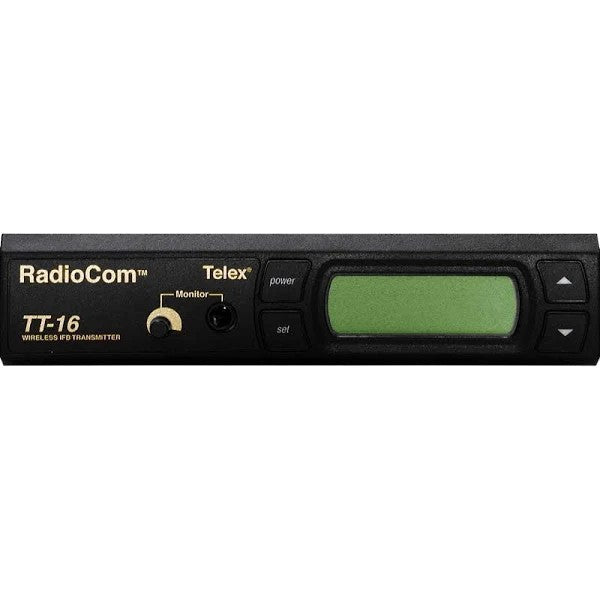

Telex TT-16 - 16-Channel Wireless IFB Base Station (UNTESTED)

Part Type: Wireless IFB Base

Part Number: TT-16

Location: 03A1

Notice: Part is untested.

The Telex TT-16 is a wireless base station transmitter for IFB or personal monitoring use, operating in the low VHF range from 64 to 68 MHz with a reliable transmission range of over 750'.

The TT-16 offers 16-channel frequency-agile synthesized technology, enabling users to switch RF channels directly from the front panel to avoid interference.

The TT-16 is equipped with a balanced 3-Pin XLR connector and a selector switch for compatibility with Telex and RTS-TW systems, and a 1/4" unbalanced connector for use with Clear-Com hardwired intercom systems.

16-channel 64.5 - 67.5 MHz band VHF frequency-agile transmitter base for IFB on-air talent or personal monitoring use with 750' transmission range
Front panel rotary frequency selector knob, headphone monitoring output with dedicated volume control
Input LED bar graph level meter
Simultaneous operation of up to 5 units in same locale
8 tunable frequencies in TV channel 3 band, 8 assigned to channel 4 band for improved interference-free frequency agility
Balanced Switchable RTS Ch.1, 2 and Audiocom, unbalanced ClearCom compatibility
RF power switch with 50mW maximum RF output
Balanced XLR and Unbalanced 1/4" inputs with dedicated level trim controls
