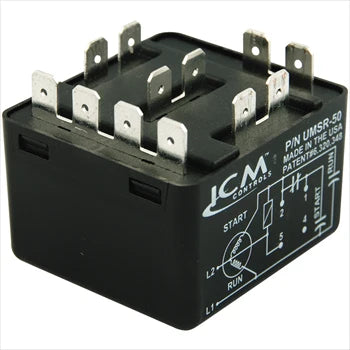

ICM Controls UMSR-50 Universal Motor Starting Relay

365-Day Warranty!

Part Type: Starting Relay

Part Number: UMSR-50

Location: 01B3

DETAILS:
Reduce Inventory!
Wire-for-Wire Replacement for ALL Standard Potential Relays
2007 Dealer Design Award – Bronze Medallist – “the NEWS”
ICM’s award-winning Universal Motor Starting Relay incorporates patented differential voltage sensing and a non-positional mounting configuration to offer a single replacement for all standard potential relays. Great way to reduce inventory. Replacement for all standard potential relays.
Patented differential voltage sensing
No user-adjustments required
Non-positional mounting configuration
50A Switching capabilities
Universal mounting bracket for easy installation
.250″ quick connect termination
Safety timer
Ideal for A/C, commercial refrigeration, heat pump, or any single-phase motor application up to 10HP

SPECIFICATIONS:
Input:
– Voltage Rating: 110-270 VAC, Single Phase
– Maximum Voltage Contact Rating: 502 VAC (absolute)
Motor Power Rating: Up to 10 HP
Operating Position: Non-positional
Safety Time Out: Approximately 1-second per 100 microfarads
Consumption: 5VA max.
Insulation: Class B (130°C); Conforms to IEC 1000- standards (6kV impulse / 6kV contact)
Life Expectancy (minimum operations):
– Mechanical:
– 1 x 10(6)
– Electrical:
– 1 x 10(6) at 16A 400 VAC
– 5 x 10(5) at 35A 400 VAC (break only)
– 5 x 10(5) at 50A 400 VAC (break only)
Contact Rating: 50A (break only), 400 VAC cos Ø = 0.7 to 0.8
WEIGHT/DIMENSIONS:
Weight: 0.2
Height: 1.625
Width: 2
Length: 2

REPLACES:
All standard potential relays

SUPCO: APR5, SUPR
