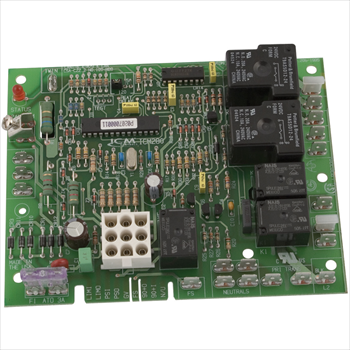

ICM Controls ICM280 Goodman Furnace Control Board

365-Day Warranty!

Part Type: Furnace Control Board

Part Number: ICM280

Location: 01A3

(Processing Delay Possible - Will Ship in 2-5 business days)

Notice: Goodman OEM Replacement Control
Low-Cost Form, Fit And Functional Replacement Board

ICM offers low cost, direct wire for wire replacement furnace controls for many popular OEM models. ICM280 come standard with many safety features including 100% gas shutoff in case of ignition failure.

DETAILS:
Low cost form, fit and functional replacement board for Goodman, Janitrol, TI, White-Rodgers and UTEC
Microprocessor based design for precise timing
Functions with all 24 VAC thermostats
Diagnostic fault codes (blinking LED) for simple troubleshooting
Twinning compatible with another ICM280
For 80+ and 90+ applications
9-pin card slot connection and 9-pin Molex connector on board
UL recognized

SPECIFICATIONS:
Line Voltage Range: 98 to 132 VAC @ 60 Hz
Ignitor: 5A @ 120 VAC
Fan: 2 HP @ 240 VAC
Inducer Motor: 7A @ 250 VAC
Gas Valve: 1A @ 24 VAC
WEIGHT/DIMENSIONS:
Weight: 0.55
Height: 1
Width: 5.75
Length: 4.75

REPLACES:
Goodman: B18099-06, B18099-08, B18099-10, B18099-13, B18099-13S

UTEC: 1012-933D

Texas Instruments: 41F-5

White-Rodgers: 50T35-730, 50T35-743
